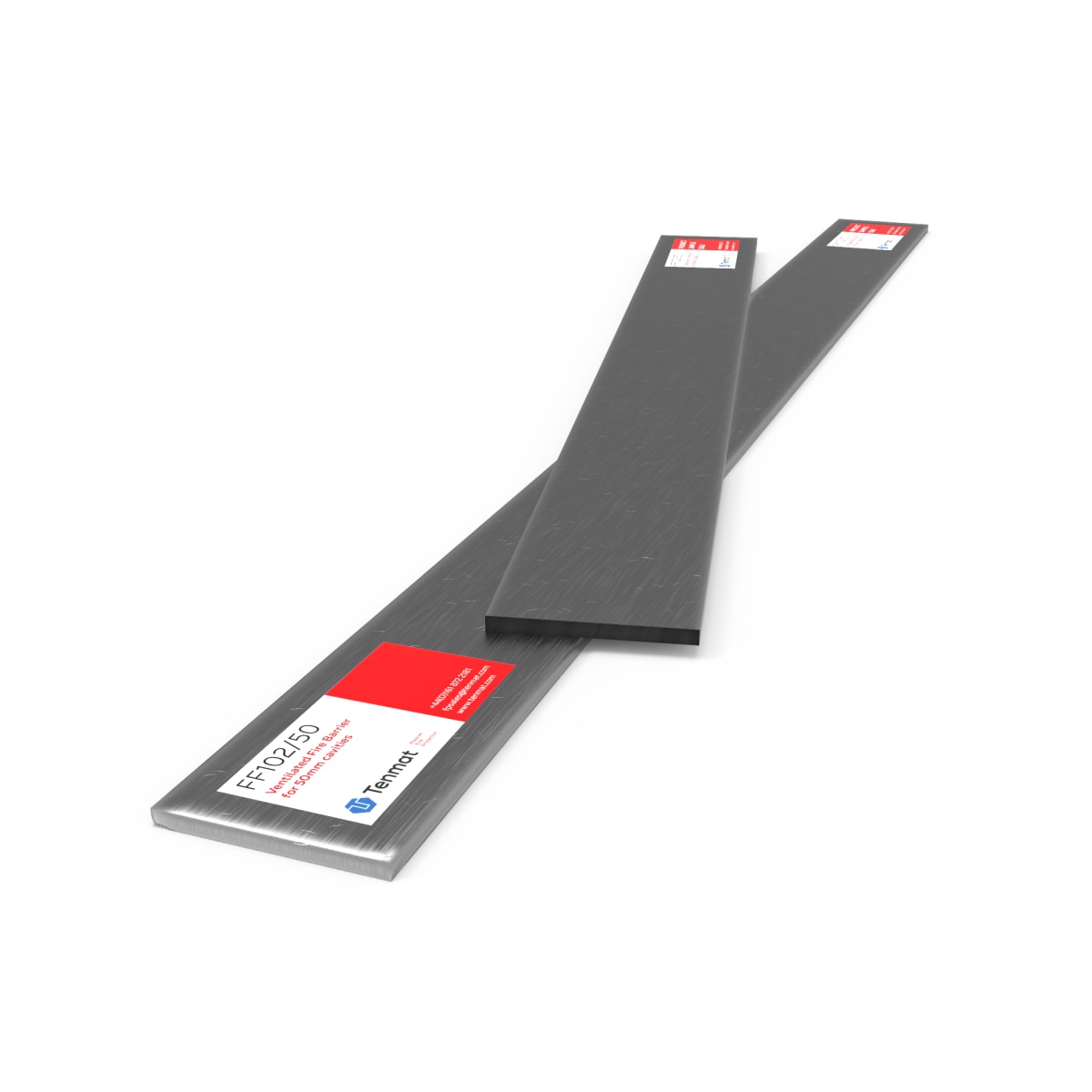

Tenmat FF102/50 Fire Cavity Barrier 6 x 75mm x 1m
SKU: IFF10250
The Tenmat FF102/50 Fire Cavity Barrier 6 x 75mm x 1m (T x W x L) is manufactured from low smoke zero halogen high expansion intumescent material and is designed to reinstate fire resisting performance to external wall cavities that are required to be ventilated (open-state) in non-fire conditions. The rigid intumescent material allows it to be provided in a strip format. It is also covered with a protective layer of aluminium foil for ease of handling and increased durability. In the event of a fire the FF102/50 intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for up to 120 minutes depending upon the construction of the external walls. The FF102/50 is designed for use within a designed 50mm cavity, and once installed will close the remaining free air gap in front of the 6mm cavity barrier of up to a maximum of 44mm (depending on construction type).
Features & benefits
- An “open state” cavity fire barrier for use horizontally within uninsulated, ventilated and drained cavities
- Fire Rated for up to 120 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance
- Ventilated design – developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes
- Lightweight - designed to be easily and quickly installed
- No maintenance required after installation
IDIFF10250
Spread The Word > Tenmat FF102/50 Fire Cavity Barrier 6 x 75mm x 1m
https://www.minsteronline.co.uk/p/tenmat-ff10250-fire-cavity-barrier-6-x-75mm-x-1m-IFF10250
The Tenmat FF102/50 Fire Cavity Barrier 6 x 75mm x 1m (T x W x L) is manufactured from low smoke zero halogen high expansion intumescent material and is designed to reinstate fire resisting performance to external wall cavities that are required to be ventilated (open-state) in non-fire conditions. The rigid intumescent material allows it to be provided in a strip format. It is also covered with a protective layer of aluminium foil for ease of handling and increased durability. In the event of a fire the FF102/50 intumescent material will expand to close the external wall cavity, providing effective fire resistance, for integrity and insulation for up to 120 minutes depending upon the construction of the external walls. The FF102/50 is designed for use within a designed 50mm cavity, and once installed will close the remaining free air gap in front of the 6mm cavity barrier of up to a maximum of 44mm (depending on construction type).
Features & benefits
- An “open state” cavity fire barrier for use horizontally within uninsulated, ventilated and drained cavities
- Fire Rated for up to 120 minutes for both integrity and insulation when tested to the general principles of BS EN 1363-1 following ASFP TGD 19 guidance
- Ventilated design – developed to allow maximum ventilation and drainage of cavities reducing the need for cavity trays or weepholes
- Lightweight - designed to be easily and quickly installed
- No maintenance required after installation
Specifications
| Product Name | Tenmat FF102/50 Fire Cavity Barrier 6 x 75mm x 1m |
| Brand | Tenmat |
| Manufacturer Name | Tenmat Ltd |
| Materials | Intumescent materials |
| Commercial Or Domestic Use | Both |
| Range | Thermal Cavity Barriers |
| Colour | Silver |
| Application | Exterior |
| Pack Quantity | 1 |
| Finish | Aluminium foil |
| Product Width | 75 mm |
| Product Length | 1000 mm |
| Thickness | 6 mm |
