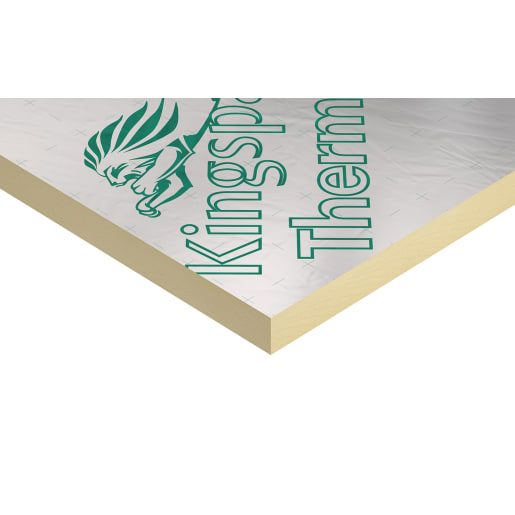

Kingspan TW50 Thermawall Cavity Wall Insulation Board 1.2m x 450 x 30mm Pack of 16
SKU: ITW50030
The Kingspan TW50 Thermawall Cavity Wall Insulation Board 1200 x 450 x 30mm (L x W x T) is a high performance cavity wall insulation with a thermal conductivity of 0.022 W/mK. Thermawall TW50 insulation boards are easy to cut and handle, ensuring an efficient installation process. They are available in a range of thicknesses.
Features & benefits
- Amongst the more thermally efficient cavity wall insulation products
- Clear cavity is maintained - resists moisture penetration
- Low emissivity foil facings significantly increase the thermal resistance of the cavity
- Meets NHBC technical requirements when used with a 50mm residual cavity
- Easy to cut and work around awkward details
- Thermal conductivity of 0.022 W/mK
- Euroclass rating of F
IDITW50030
Insulation > Multi Application Insulation > Rigid Board Insulation > Kingspan TW50 Thermawall Cavity Wall Insulation Board 1.2m x 450 x 30mm Pack of 16
https://www.minsteronline.co.uk/p/kingspan-thermawall-tw50-cavity-board-1200-x-450-x-30mm-ITW50030
The Kingspan TW50 Thermawall Cavity Wall Insulation Board 1200 x 450 x 30mm (L x W x T) is a high performance cavity wall insulation with a thermal conductivity of 0.022 W/mK. Thermawall TW50 insulation boards are easy to cut and handle, ensuring an efficient installation process. They are available in a range of thicknesses.
Features & benefits
- Amongst the more thermally efficient cavity wall insulation products
- Clear cavity is maintained - resists moisture penetration
- Low emissivity foil facings significantly increase the thermal resistance of the cavity
- Meets NHBC technical requirements when used with a 50mm residual cavity
- Easy to cut and work around awkward details
- Thermal conductivity of 0.022 W/mK
- Euroclass rating of F
Specifications
| Product Name | Kingspan TW50 Thermawall Cavity Wall Insulation Board 1.2m x 450 x 30mm Pack of 16 |
| Brand | Kingspan |
| Manufacturer Name | Kingspan Group |
| Manufacturer Part Number | ITW50030 |
| Compliance Approvals | BS EN ISO 14001 |
| Warranty Period | 12 months |
| Materials | Polyisocyanurate |
| Commercial Or Domestic Use | Both |
| Range | Cavity Boards |
| Application | Interior |
| Pack Quantity | 16 |
| Country Of Origin | Ireland |
| Finish | Low emissivity composite foil |
| Coverage | 8.64 m2 |
| Recyclable | Yes |
| Renewable | No |
| Product Width | 450 mm |
| Product Weight | 3.3 kg/m2 |
| Product Length | 1200 mm |
| Thickness | 30 mm |
| Moisture Resistant | Yes |
| Thermal Conductivity | 0.022 W/mK |
| R Value | 4.5 m2K/W |
| Compression Strength | 140 kPa |
