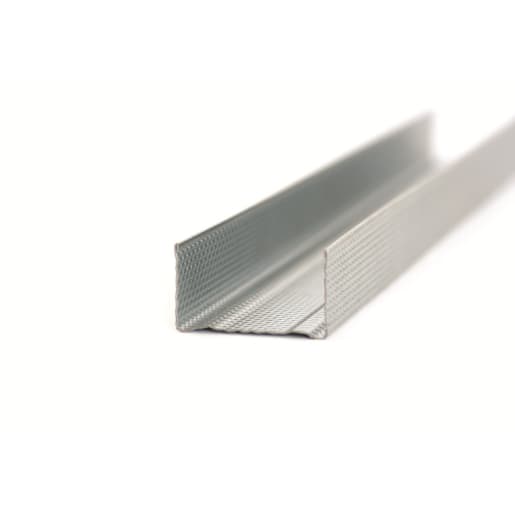

Gypframe Folded Edge Floor and Ceiling Channel 3.6m x 72mm
SKU: BGM27421
Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel 3600 x 72mm (L x W) Metal used for securing wall studs at floor and ceiling junctions. Although Standard Folded Edge (FEC) channels are the most commonly used, Deep Flange (DC) and Extra Deep Flange (EDC) versions are available for partitions between 4200mm high and 8000mm high respectively, or in situations where deflection head details, improved impact resistance and easier skirting fixing is required. Conforms to EN 14195.
Features & benefits
- Used for securing wall studs at floor and ceiling junctions
- Improved impact resistance
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Deep Flange (DC) and Extra Deep Flange (EDC) versions are also available for partitions between 4200mm high and 8000mm high respectively
- Conforms to EN 14195
IDBGM27421
Drywall > Drywall Metal Systems > Metal Shaftwall > Gypframe Folded Edge Floor and Ceiling Channel 3.6m x 72mm
https://www.minsteronline.co.uk/p/british-gypsum-folded-edge-channel-72mm-w-grey-BGM27421
Gypframe 72 FEC 50 Folded Edge Standard Floor & Ceiling Channel 3600 x 72mm (L x W) Metal used for securing wall studs at floor and ceiling junctions. Although Standard Folded Edge (FEC) channels are the most commonly used, Deep Flange (DC) and Extra Deep Flange (EDC) versions are available for partitions between 4200mm high and 8000mm high respectively, or in situations where deflection head details, improved impact resistance and easier skirting fixing is required. Conforms to EN 14195.
Features & benefits
- Used for securing wall studs at floor and ceiling junctions
- Improved impact resistance
- Used in situations where deflection head details, improved impact resistance and easier skirting fixing is required
- Deep Flange (DC) and Extra Deep Flange (EDC) versions are also available for partitions between 4200mm high and 8000mm high respectively
- Conforms to EN 14195
Specifications
| Product Name | Gypframe Folded Edge Floor and Ceiling Channel 3.6m x 72mm |
| Brand | Gypframe |
| Manufacturer Name | British Gypsum |
| Manufacturer Part Number | 27421/3 |
| EAN | 5015341274213 |
| Compliance Approvals | EN 14195 |
| Materials | Steel |
| Commercial Or Domestic Use | Both |
| Range | Standard Channels |
| Colour | Chrome |
| Pack Quantity | 1 |
| Finish | Textured |
| Recyclable | Yes |
