ARC Thermal Cavity 50mm Fire Barrier 1200 x 65 x 65mm
SKU: IATCB050

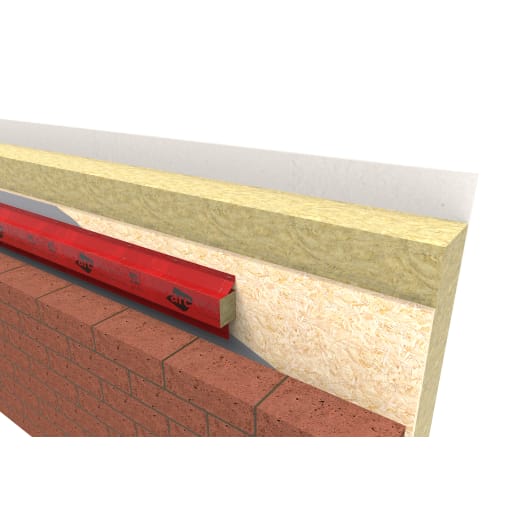

The ARC Thermal Cavity (for 50mm timber to brickwork cavity) Fire Barrier 1200 x 65 x 65mm (L x W x T) is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
IDIATCB050
External Envelope > Facade Systems > Cavity Barriers > ARC Thermal Cavity 50mm Fire Barrier 1200 x 65 x 65mm
https://www.minsteronline.co.uk/p/arc-50mm-thermal-cavity-barrier-1200-x-65-x-65mm-red-IATCB050
The ARC Thermal Cavity (for 50mm timber to brickwork cavity) Fire Barrier 1200 x 65 x 65mm (L x W x T) is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
Specifications
| Product Name | ARC Thermal Cavity 50mm Fire Barrier 1200 x 65 x 65mm |
| Brand | ARC |
| Product Type | Fire Barriers |
| Manufacturer Name | ARC Building Solutions |
| Manufacturer Part Number | ARC TCB 50 |
| Compliance Approvals | QA Certified, Certifire |
| Materials | Rock Fibre Mineral Wool |
| Commercial Or Domestic Use | Both |
| Colour | Yellow |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Applicable Standards | BS EN 13501-1 |
| Product Width | 65 mm |
| Product Weight | 0.22 kg |
| Product Length | 1200 mm |
| Thickness | 65 mm |
| Thermal Conductivity | 0.037 W/mK |
| Cavity Width | 50 mm |
