ARC Thermal Cavity 100mm Fire Barrier 1200 x 120 x 115mm
SKU: IATCB100

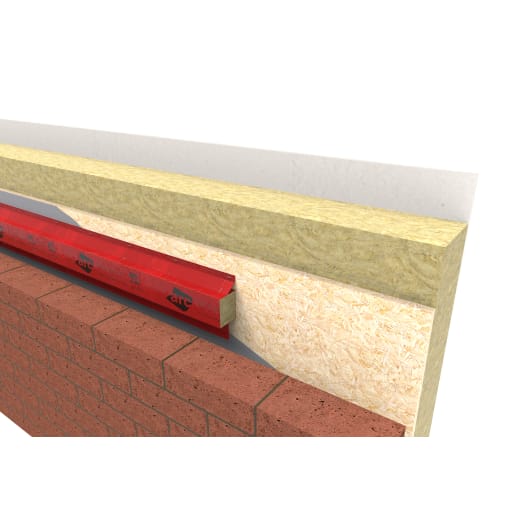

The ARC Thermal Cavity (for 100mm timber to brickwork cavity) Fire Barrier 1200 x 120 x 115mm (L x W x T) is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
IDIATCB100
External Envelope > Facade Systems > Cavity Barriers > ARC Thermal Cavity 100mm Fire Barrier 1200 x 120 x 115mm
https://www.minsteronline.co.uk/p/arc-100mm-thermal-cavity-barrier-1200-x-120-x-115mm-orange-IATCB100
The ARC Thermal Cavity (for 100mm timber to brickwork cavity) Fire Barrier 1200 x 120 x 115mm (L x W x T) is used as a cavity fire barrier for timber frame construction. The barrier restricts the spread of smoke and flames in case of a fire, as well as minimising the effect of flanking noise pollution at wall junctions. Manufactured from low-resin, non-combustible rock fibre mineral wool insulation, it is sleeved in polythene for on-site protection. Designed to be compression fitted. In vertical applications, both flanges are fixed; in horizontal applications, only the top flange should be fixed.
Features & benefits
- Offers up to 60 minutes of fire integrity
- Can be used around window and door openings
- Meets requirements of Robust Detail Part E and Approved Document B
- Easy to install
- Specified in semi-detached houses, apartments and major projects
Specifications
| Product Name | ARC Thermal Cavity 100mm Fire Barrier 1200 x 120 x 115mm |
| Brand | ARC |
| Manufacturer Name | ARC Building Solutions |
| Manufacturer Part Number | TCB100 |
| Compliance Approvals | Certifire |
| Materials | Rock fibre mineral wool |
| Commercial Or Domestic Use | Both |
| Range | Fire Barriers |
| Colour | Yellow |
| Application | Interior |
| Pack Quantity | 1 |
| Country Of Origin | United Kingdom |
| Product Width | 120 mm |
| Product Weight | 0.7 kg |
| Product Length | 1200 mm |
| Thickness | 115 mm |
| Thermal Conductivity | 0.037 W/mK |
| Cavity Width | 100 mm |
